- Material: Parts A,C.E.F are made of UL approved nylon PA66,B andD ARE made of nitrile butadiene rubber(NBR).
- Thread spec: Metric,PG.
- Working temperature:—40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃;—20℃ to 80℃ in dynamic state, instantaneous heat resistance up to100℃.
- Characteristics: Special desing of ciamping die and rubber part,large range in clamping cable,ultra—strong stretching resistance,waterproof, dustproof, and high ability to resist salt,acid,alkali,alcohol,grease and general solvent.
- Color: Black, Light grey, as wellas special colors that can be designed at request.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information

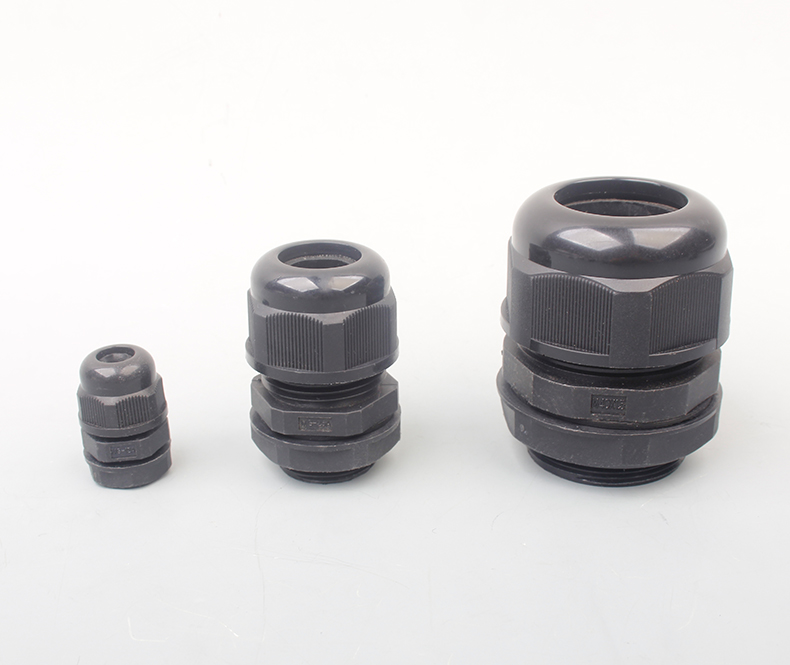

Nylon Cable Gland MG Type
Specification：
|
Model |
Cable Range(mm) |
Thead O,D,L2(mm) |
Thead LengthL1(mm) |
Spanner Size |
PCS |
|
MG12 |
4.5-8 |
12 |
9 |
17/19 |
50/3700 |
|
MG16 |
6-10 |
16 |
15 |
22 |
50/2000 |
|
MG20 |
9-14 |
20 |
15 |
26/27 |
50/1200 |
|
MG25 |
13-18 |
25 |
15 |
32/33 |
24/684 |
|
MG32 |
18-25 |
32 |
15 |
41 |
20/540 |
|
MG40 |
24-30 |
40 |
20 |
50 |
12/324 |
|
MG50 |
30-40 |
50 |
23 |
60/62 |
6/80 |
|
MG63 |
40-50 |
63 |
24 |
73/75 |
4/112 |
